Gate Valves
Gate valves are one of the most widely used valves in industrial pipelines, designed to provide a straight-line flow with minimal restriction. At Elite Flow Control, we manufacture gate valves built for demanding conditions across oil and gas, petrochemical, power, and chemical industries. Each valve goes through strict quality checks at every production stage to make sure it performs reliably from day one.
Materials and Construction
- Carbon Steel for general high-pressure and high-temperature applications
- Stainless Steel (SS304, SS316) for corrosion-resistant requirements
- Alloy Steel and Duplex Steel for elevated pressure and temperature environments
- Super Duplex and Hastelloy for aggressive chemical and offshore service
- Titanium for highly corrosive and specialized process applications

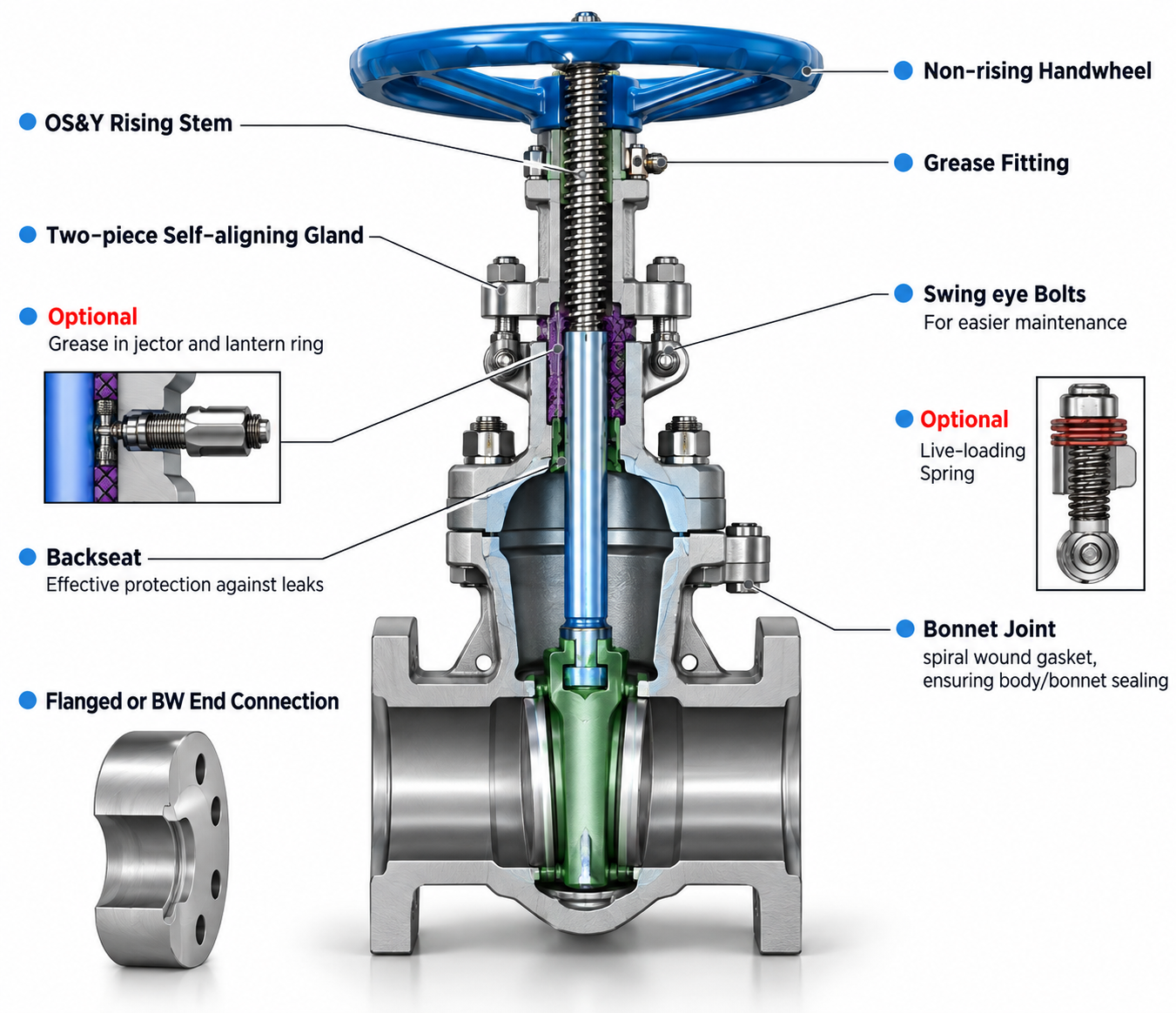

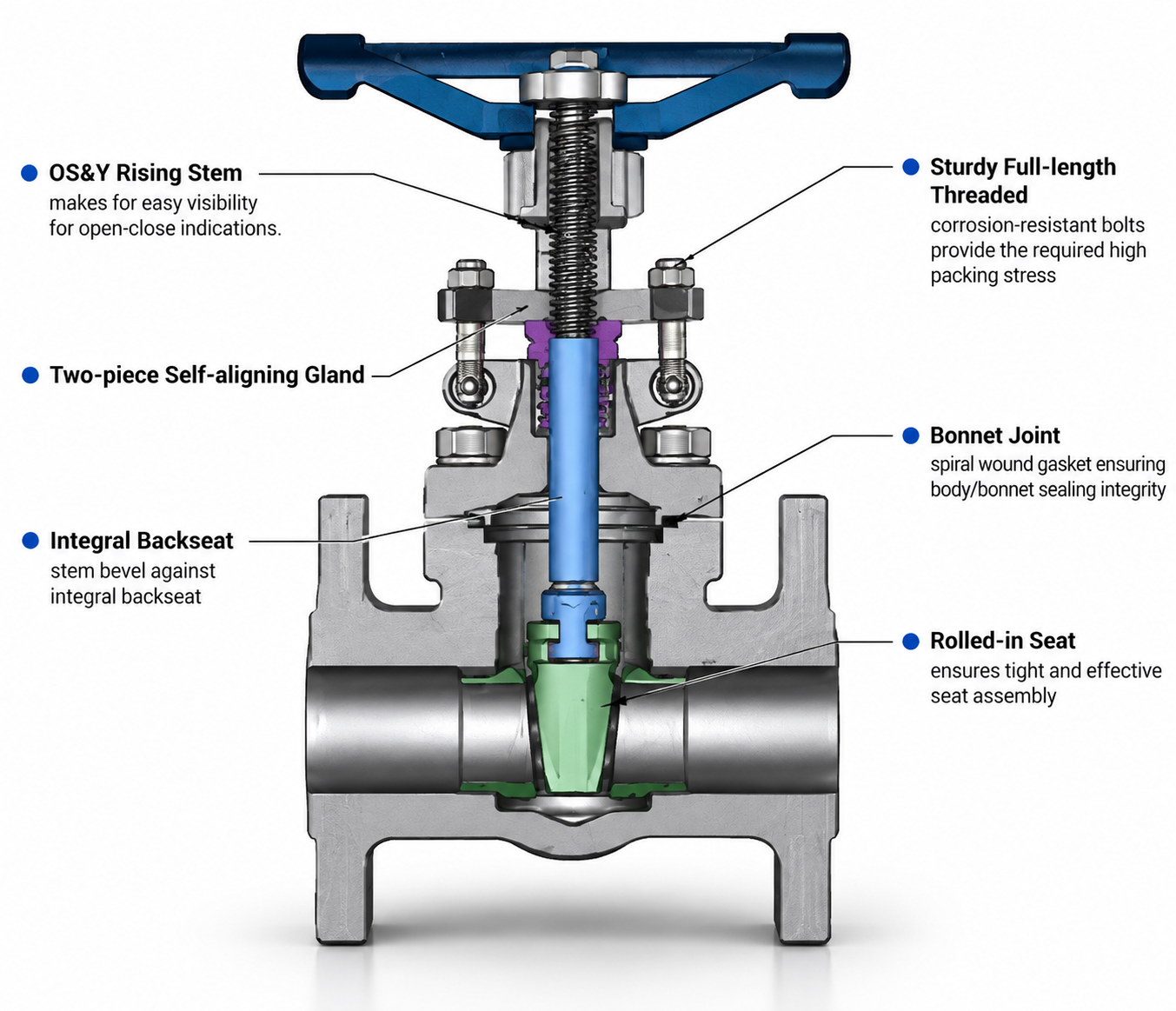

- Available in Rising Stem and Non-Rising Stem configurations

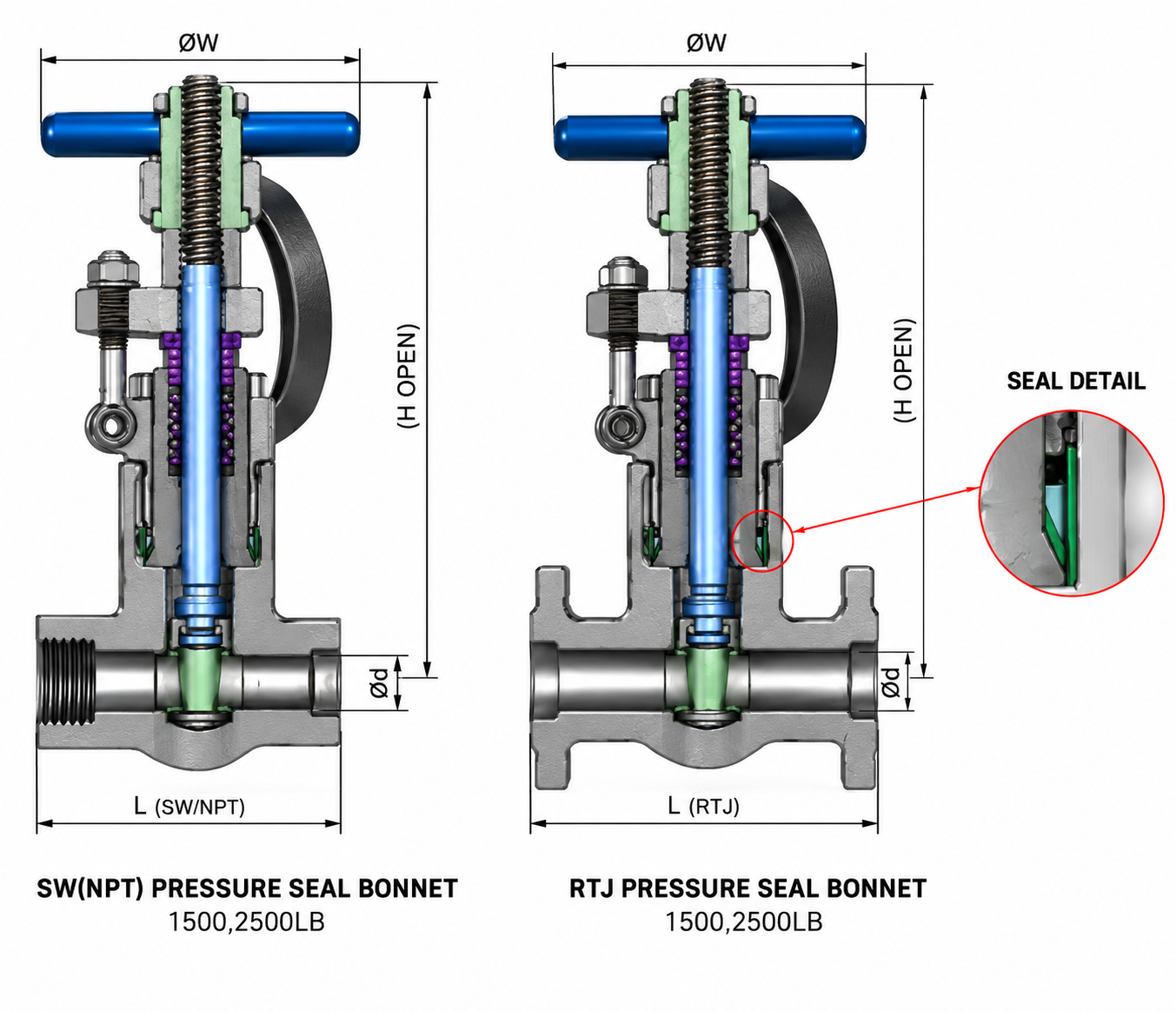

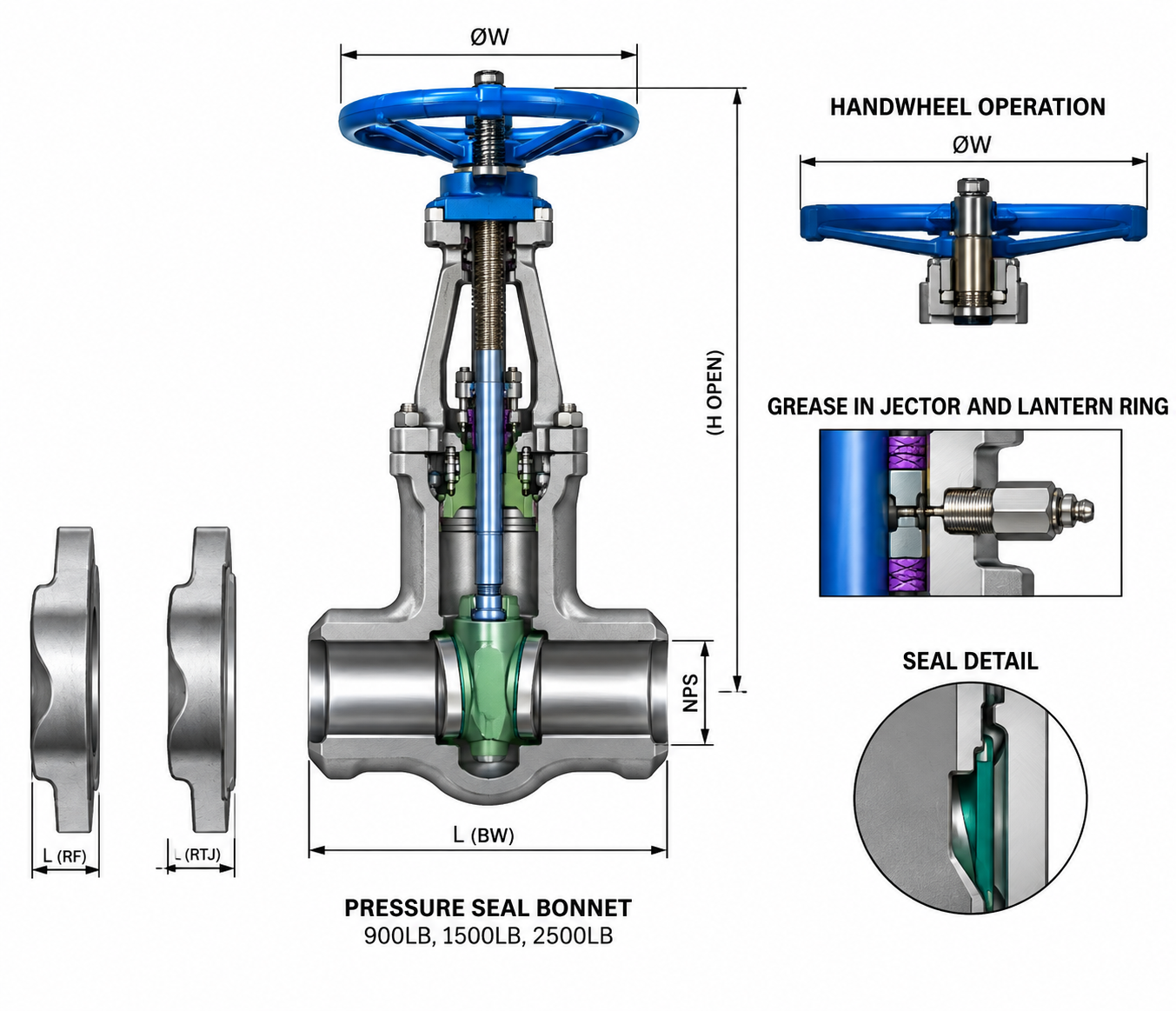

- Bolted and Pressure Seal Bonnet options to suit different pressure classes
Accessories and Customization
- Electric, Pneumatic, and Hydraulic Actuators for automated operation
- Gear operators for large-bore manual operation
- Bypass valves and drain plugs on request
- PTFE/PFA lining available for corrosive media handling
- Custom end connections including flanged, butt weld, and socket weld
- Extended stem options for insulated or buried pipeline installations
Compliance and Certification
- Manufactured in accordance with API 600, API 603, BS 1414, and ASME B16.34
- Fire Safe Design per API 607 and API 6FA
- Quality Management System certified to ISO 9001:2015
- PED (Pressure Equipment Directive) certified for European market requirements
- SIL (Functional Safety Certificate) for safety-critical applications
- Environmental and safety compliance under ISO 14001:2015 and ISO 45001:2018
