Check Valves
Check valves serve one simple but critical purpose, keeping flow moving in the right direction and preventing costly backflow damage to pumps, compressors, and pipelines. At Elite Flow Control, we manufacture check valves designed for dependable non-return service across oil and gas, petrochemical, power, water treatment, and chemical industries. Each valve is built to respond instantly to flow reversal and inspected thoroughly before it ever leaves the facility.
Materials and Construction
- Carbon Steel for general high-pressure and high-temperature pipeline service
- Stainless Steel (SS304, SS316) for corrosion-resistant and process-critical applications
- Alloy Steel for elevated temperature and demanding pressure environments
- Duplex and Super Duplex Steel for offshore and aggressive media conditions
- Hastelloy and Titanium for highly corrosive chemical and specialty process service

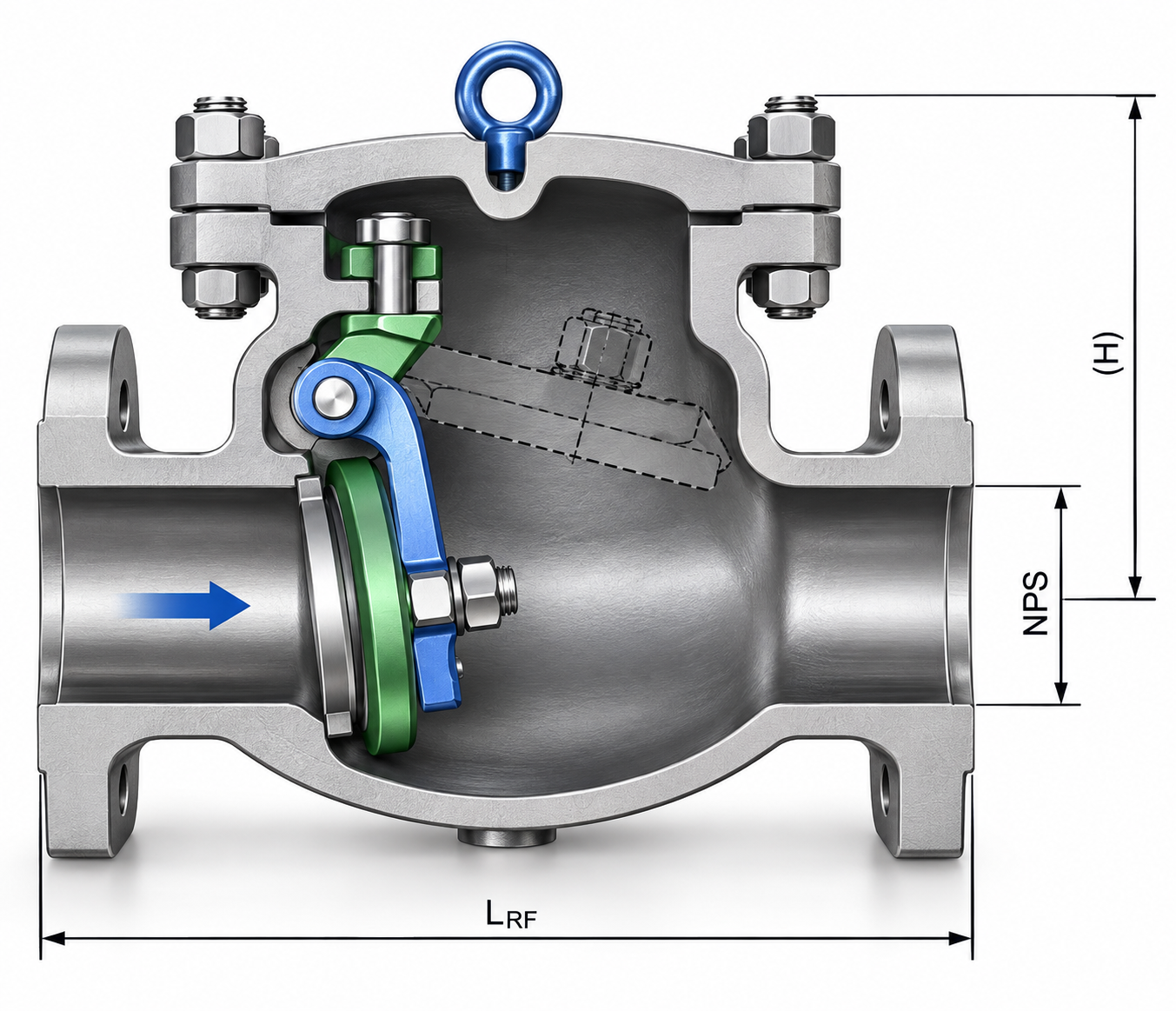

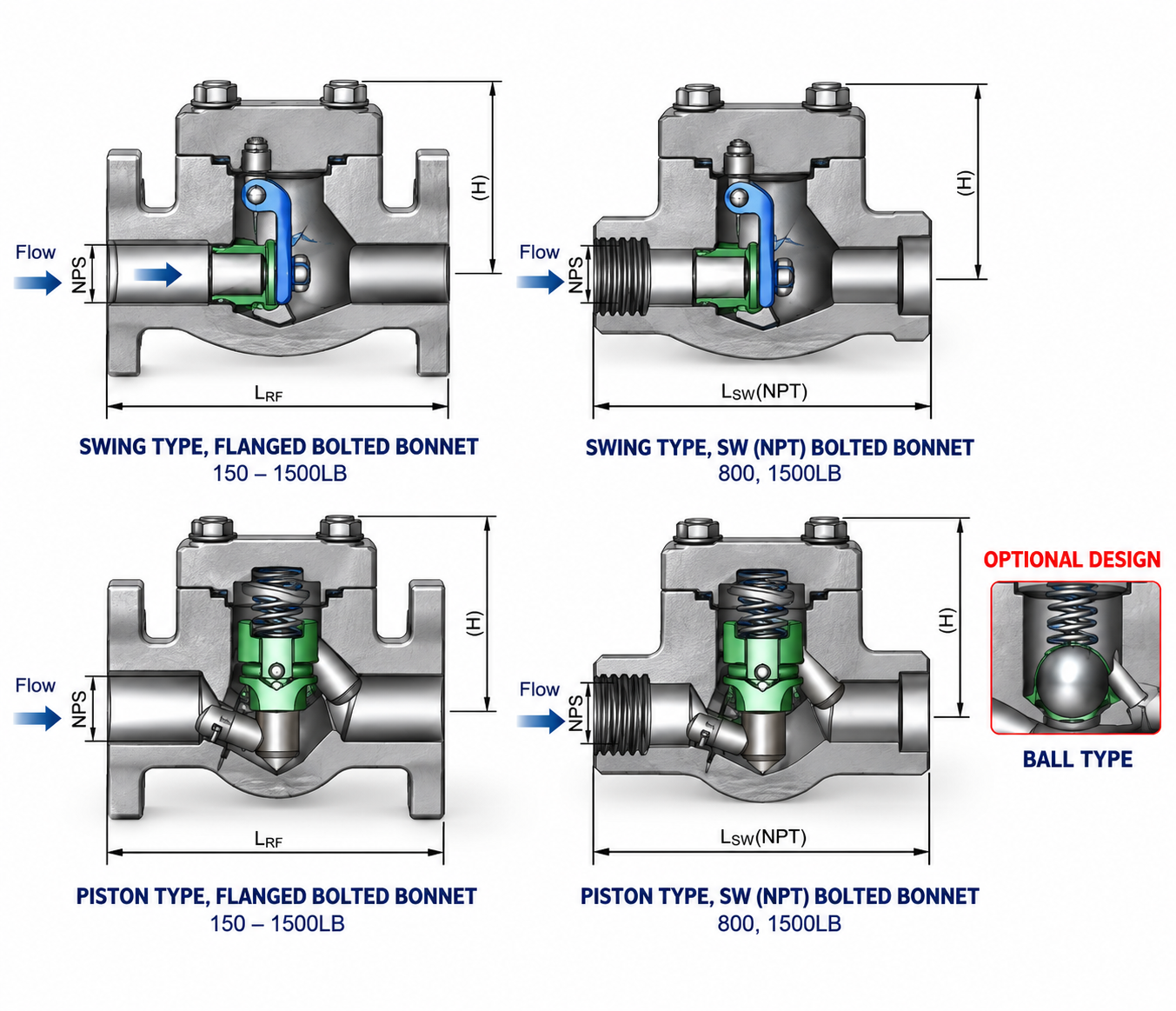

- Available in Swing, Tilting Disc, Dual Plate, Piston, and Ball type configurations

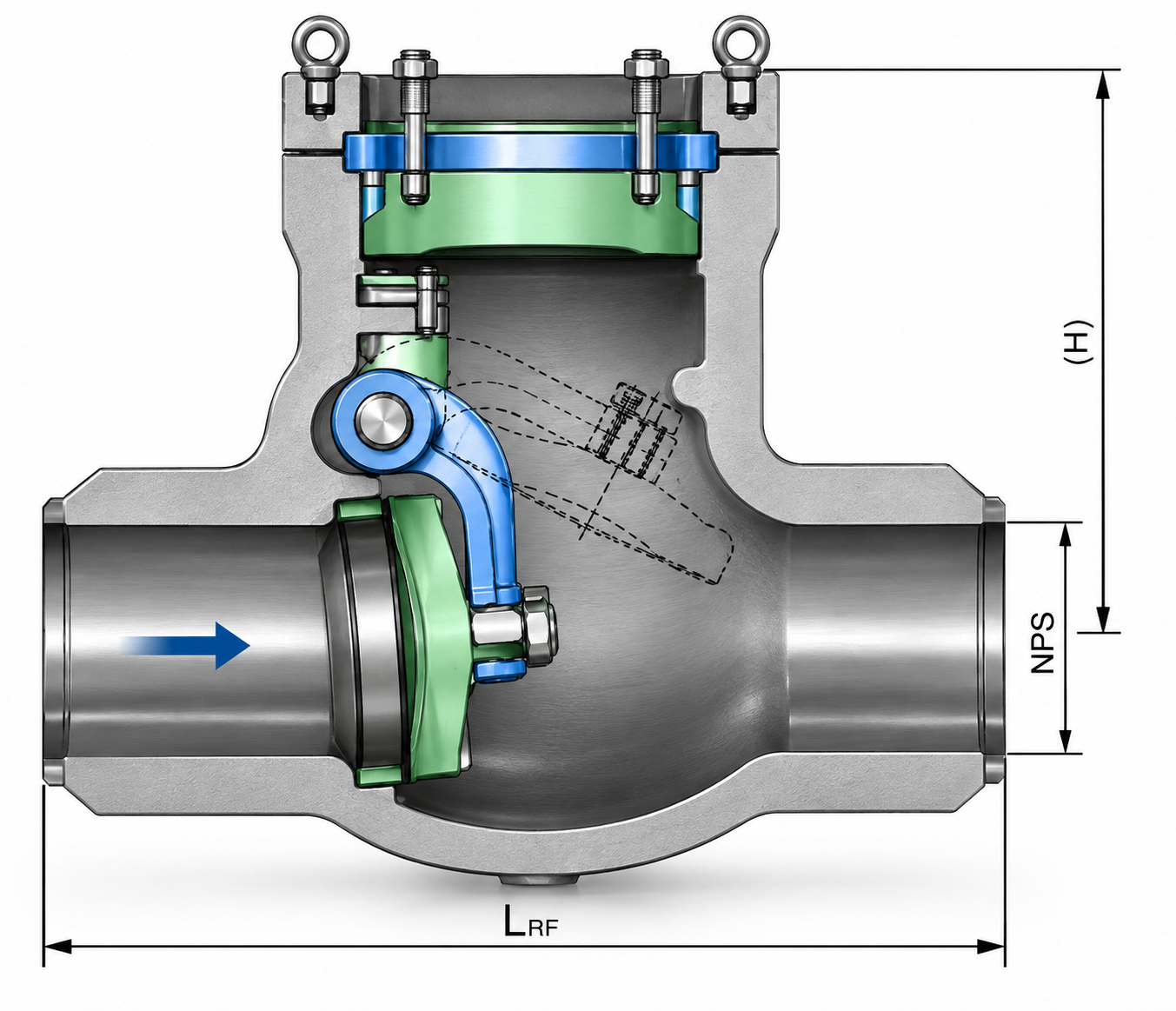

- Bolted cover and pressure seal bonnet designs for varying pressure class requirements
Accessories and Customization
- Spring-assisted closing for fast response and water hammer prevention
- Dampening devices and cushioned closing options for surge-sensitive systems
- External lever and counterweight arrangements for low-pressure and vertical installations
- PTFE/PFA lining available for corrosive and chemical media handling
- Custom trim materials including hardened seats for abrasive and high-velocity service
- Flanged, butt weld, and wafer end connections to suit different piping configurations
Compliance and Certification
- Manufactured in accordance with API 594, API 6D, BS 1868, and ASME B16.34
- Fire Safe Design per API 607 and API 6FA
- Quality Management System certified to ISO 9001:2015
- PED (Pressure Equipment Directive) certified for European market compliance
- SIL (Functional Safety Certificate) for safety-critical process applications
- Environmental and safety compliance under ISO 14001:2015 and ISO 45001:2018
